How a carrot processing line works as one controlled system
Learn how material flow, heat, separation, controls and sanitation interact across an industrial carrot juice or puree processing line.
Process flow
Carrot process flow with a clear juice–puree split
Use the flow map to define scope and interfaces. Final operations and setpoints remain project-specific and must follow the approved product and food-safety plan.
- Common preparation
- Two downstream branches
- Packaging closes the process
Planning diagram
Trace the material from intake to package
Not every project needs every optional step. Peeling, blanching or softening, homogenization, deaeration, concentration and aseptic filling should be included only when the product specification and process study justify them.

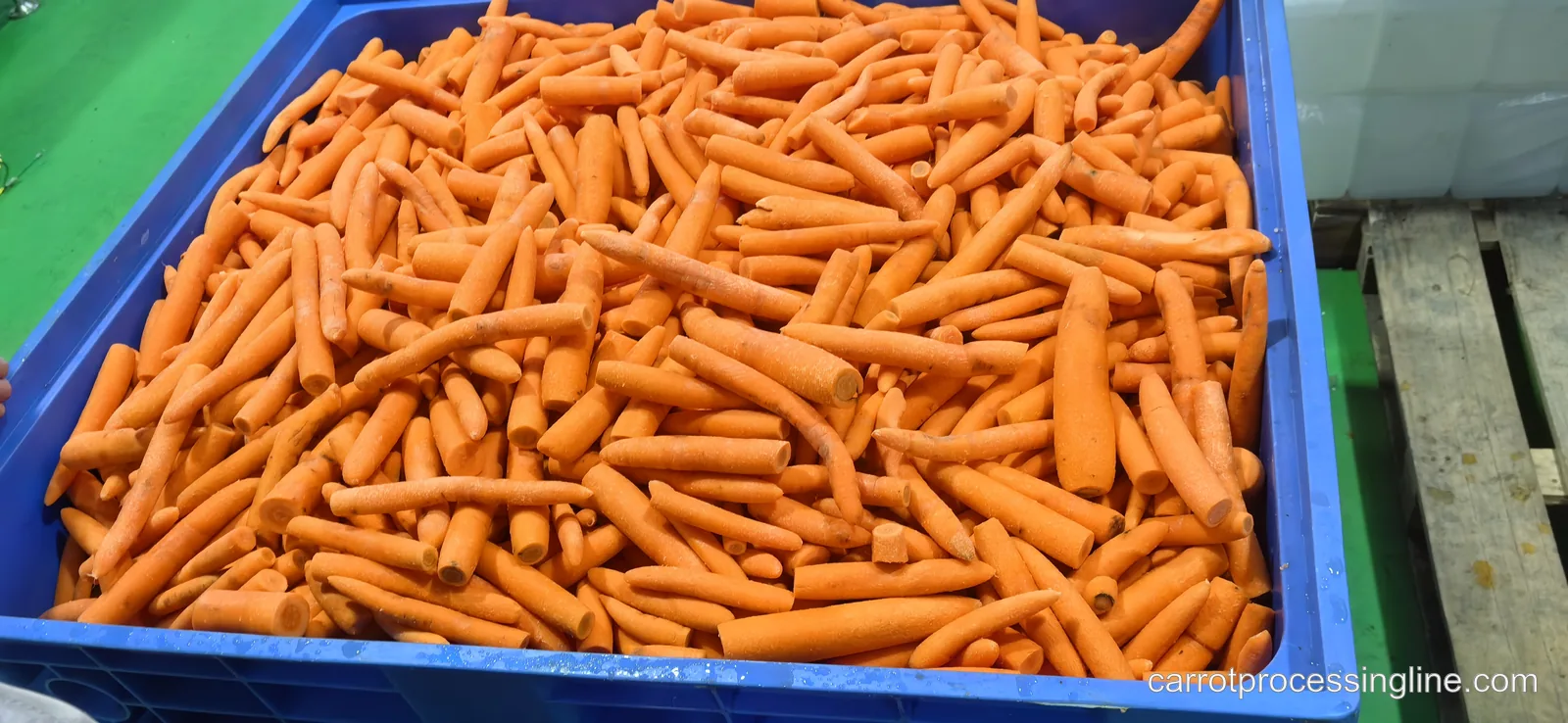

- ReceiveDefine feed condition, delivery and buffer.
- WashRemove soil and present roots for inspection.
- InspectReject foreign material and unacceptable carrots.
- PrepareSize and condition the feed for the product route.
Juice branchSoften as required → extract → manage solids → standardize.
Puree branchSoften as required → pulp → refine → manage texture.
Protected finishValidated thermal process → compatible filling → package handling.
Stage definition
Give each stage a measurable inlet and outlet
| Stage | Primary purpose | Define before selection |
|---|---|---|
| Receiving and washing | Remove field contamination and present carrots for inspection. | Soil load, foreign material, water strategy, inspection standard |
| Preparation | Create the size and condition needed by extraction or pulping. | Peeling policy, cut size, oxidation control, heat treatment basis |
| Separation or refining | Establish liquid/solid split or puree particle profile. | Product specification, screen/technology choice, side-stream route |
| Thermal processing | Support the validated safety and quality objectives. | Product properties, target process, hold and cooling requirements |
| Filling | Transfer protected product into the selected package. | Package, closure, sterile boundary, downstream handling |
Engineering maturity
A process-flow diagram is the beginning, not the control specification
The next engineering layer identifies equipment tags, line sizes, instruments, valves, cleaning routes, utility connections and control narratives. Tie those documents to a scope matrix so that batteries limits and exclusions remain visible as the project develops.
